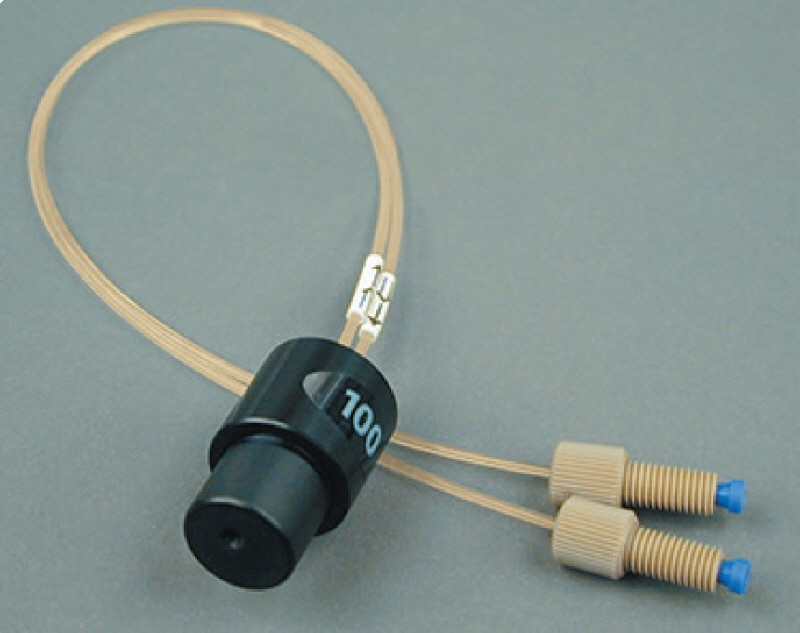

Ultra-Low Volume Back Pressure Regulators
Ultra-Low Volume BPR Consumable > Valve > Back Pressure Regulator (BPR)- 제품설명
-
- Low swept volume : 6uL
- 액체가 이동하는 통로 재질 : PEEK, perfluoroelastomer, ETFE
- 사용 가능한 Tubing : 1/16" OD 튜빙
- Maker : IDEX / USA
- 연락처
-
경기본사 : 031-790-1907 (내선1)
대전지사 : 042-824-5167
*Specifications and details
| Back pressure setting psi(bar) |
Flow rate recommendations |
Recommended pressure range psi(bar) |
1/16" OD Tubing | |
| M-410 | 1002(7)2 | Optimal: 100μL-1mL/min Max: 4mL/min |
40-150(3-10) | PEEK, 0.010" ID |
| M-412 | 5002(34)2 | Optimal: 100μL-1mL/min Max: 4mL/min |
250-525(17-36) | PEEK, 0.010" ID |
| M-420 | 100(7)3 | Optimal: 3-8mL/min Max: 10mL/min |
40-150(3-10) | PEEK, 0.020" ID |
| 1.All data generated using water at room temperature | ||||
| 2.Set at a flow rate of 0.5mL/min | ||||
| 3.Set at a flow rate of 5mL/min | ||||
| P/N | Description | Pressure Setting | Tubing OD | Includes | Swept volume |
| ULTRA-LOW VOLUME BPRs | |||||
| M-410 | Low flow | 100psi(7bar) | 1/16" | XP-230 | 6μL |
| M-412 | Low flow | 500psi(34bar) | 1/16" | XP-230 | 6μL |
| M-420 | High flow | 100psi(7bar) | 1/16" | XP-230 | 6μL |
