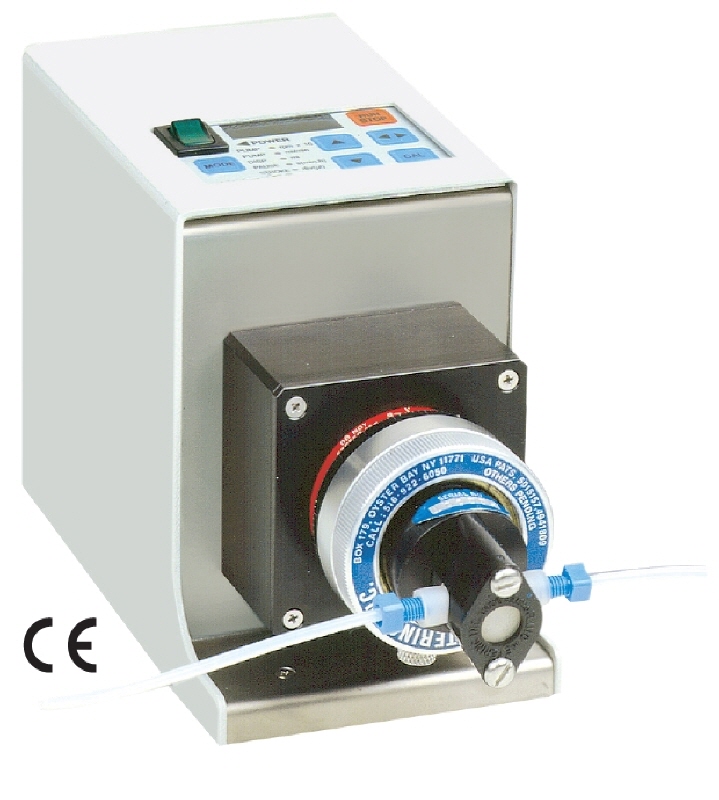

REGLO-CPF Digital
피스톤펌프 Precision Pump > Piston Pump > Pump Drive- 제품설명
-
- 0.1-180 ml/min
- 6.9 bar Differential Pressure
- 멤브레인 키패드, LED display
- Flow rate, RPM, Volume으로 컨트롤 가능
- Dispensing 기능
- Maker : ISMATEC / USA
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
*Ordering information
| Model(drive only) | Order No. (drive only) |
Flow rates | Channels | Speed |
| REGLO-CPF Analog | ISM 1014 | 0.045-180 | 1 | 18 to 1800 |
| REGLO-CPF Digital | ISM 321 | 0.1-180 | 1 | 40 to 1800 |
| Foot swtich | ||||
| REGLO-CPF Analog | ISM 891 | see page 65 | ||
| REGLO-CPF Digital | ISM 894 | see page 65 |
- Valveless Rotary Piston Pump
- Flow rates from 0.1 to 180 ml/min
- (depending on pump head used).
- Compact, microprocessor-controlled dispensing pump drive with interchangable pump heads.
- Performance Summary
- Differential Pressure : 6.9 max Bar
- Flow Rate : 0.1 min 180 max mlpm
- Speed : 40 min 1800 max rpm

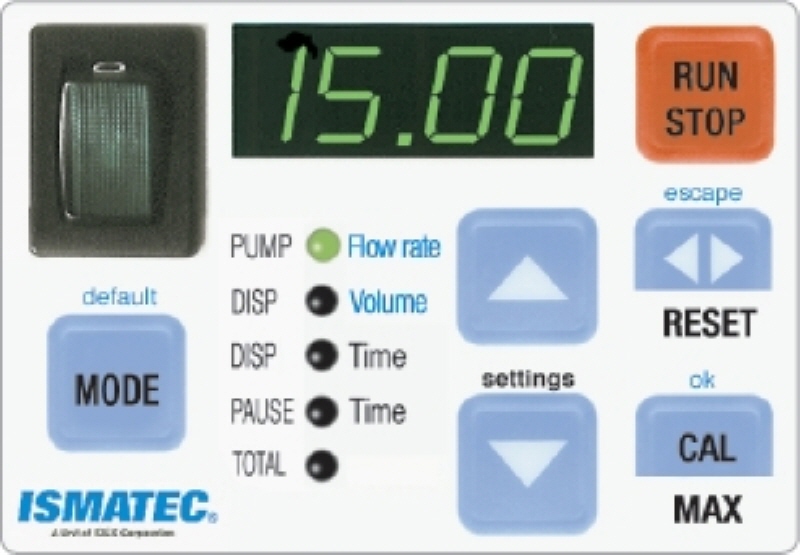

- Operating Panel - 6-button membrane key-pad - LED display
- Operating Modes - Pumping by flow rate (ml/min) - Pumping by drive speed (rpm) - adjustable stroke volume - dispensing by volume (ml) - dispensing by time (0.1s up to 999hrs) - dispensing by volume within a pre-set time - interval dispensing by volume with a pause - interval dispensing by time with a pause - setting the number of dispensing cycles - pause time setting (from 0.1s up to 999hrs) - piston stroke back-steps for drip-free dispensing - reversible rotation direction
- Calibrating Functions - For flow rate (ml/min) -For volume (ul and ml)
- Interfaces - RS232 "in" for operation controlling via PC - RS232 "out" for cascading up to 8 pumps - Digital Input RUN/STOP, autostart - Analog Output Speed monitoring (0-9 kHz)
- Motor type : DC-motor
- Speed : 40 to 1800 rpm
- Speed setting Flow rate setting : rpm, resolution 0.1 rpm μl/min and ml/min
- Power consumption : 75 W
- Mains connection : 100-230VAC/50-60Hz adjustable
- Protection rating : IP 30
- Depth/Width/Height : 250×100×135 mm
- Weight : 2.1kg
