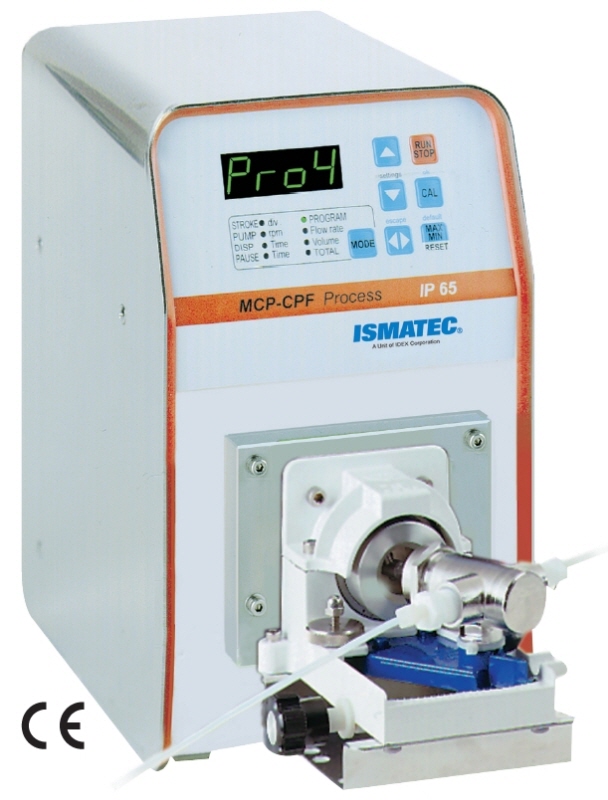

MCP-CPF Process
피스톤펌프 Precision Pump > Piston Pump > Pump Drive- 제품설명
-
- 0.025-2300 ml/min
- 6.9 bar Differential Pressure
- Protection rating : IP65
- PC프로그램을 사용하여 컨트롤 가능
- 4개의 프로그램 메모리 기능
- Maker : ISMATEC / USA
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
*Ordering information
| The complete pump system MCP-CPF Process consists of: | |
| Drive | ISM 919 |
| Pump-head and tubing see pages 58, 59 and 61-63/66-67 |
|
| Accessories -Software ProgEdit(page 65) -Foot switch(page 65) |
SOF 104 IS 10039 |
- Performance Summary
- Differential Pressure : 6.9 max Bar
- Flow Rate : 0.025 min 2300 max mlpm
- Speed : 10 min 1800 max rpm
- Operating Panel - 7-button membrane key-pad - LED Display
- Operating Modes - Pumping by drive speed (rpm) - Pumping by flow rate (ml/min) - Adjustable stroke volume - Dispensing by volume (ml) - Dispensing by time (0.1s up to 999hrs) - Dispensing by volume within a pre-set time - Interval dispensing by volume with a pause - Interval dispensing by time with a pause - Setting the number of dispensing cycles - Pause time setting (from 0.1s up to 999hrs) - Piston stroke back-steps for drip-free dispensing - Reversible rotation direction
- Calibrating Functions - For flow rate (ml/min) - For dispensing volume (ml)
- Interfaces - RS232 "in" for operation controlling via PC - RS232 "out" for cascading up to 8 pumps - Analog Input Speed control (05 or 010V / 020 or 420mA) - Analog Output Speed monitoring (010VDC or 07.2 kHz) - Digital Input Start/Stop, rotation direction, autostart, 2 universal inputs - Digital Output 2 universal outputs
- Motor type : DC-motor
- Speed : 10 to 1800 rpm
- Speed setting Flow rate setting : rpm, resolution 0.1 rpm μl/min, m/min, liters/min
- Power consumption : 100 W
- Mains connection : 100 -230 VAC / 50 -60 Hz
- Protection rating : IP 65
- Depth/Width/Height : 220 X 155 X 260 mm (without pump head)
- Weight : 6.9kg (without pump head)
