RH00
피스톤펌프 Precision Pump > Piston Pump > ~180ml/min- 제품설명
-
- 0.025-45 ml/min
- 6.9 bar Differential Pressure
- 2.5-25 ul Stroke Volume
- 사용유체에 따른 헤드 재질 선택 가능
- Maker : ISMATEC / USA
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167

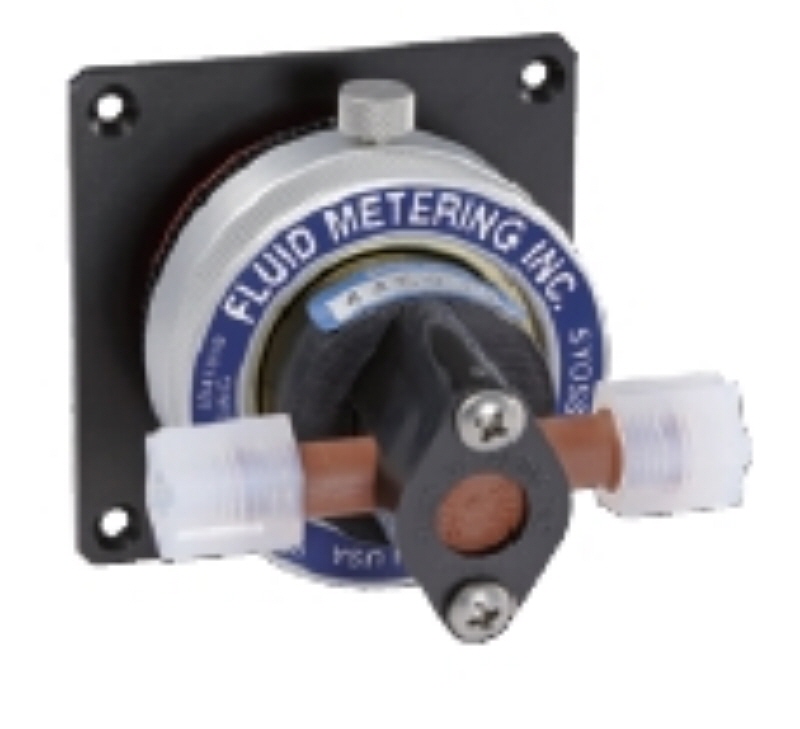

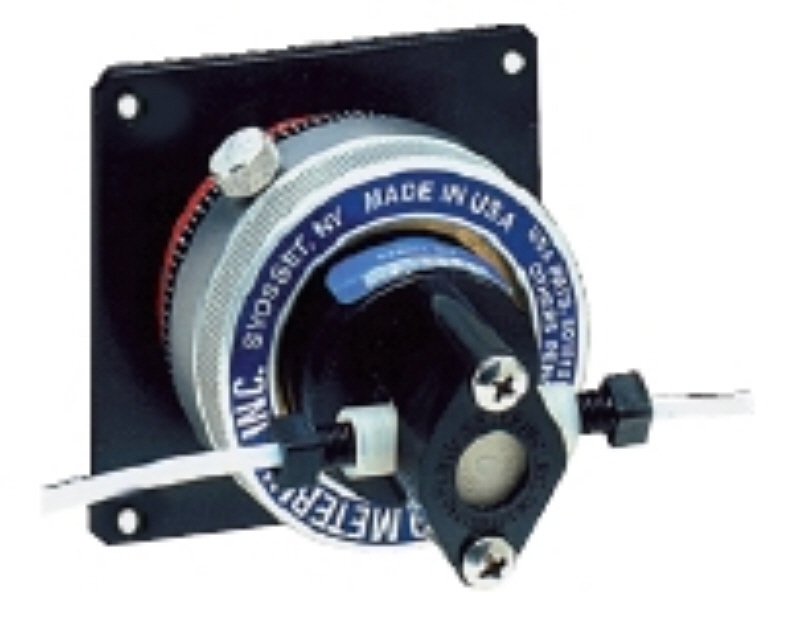

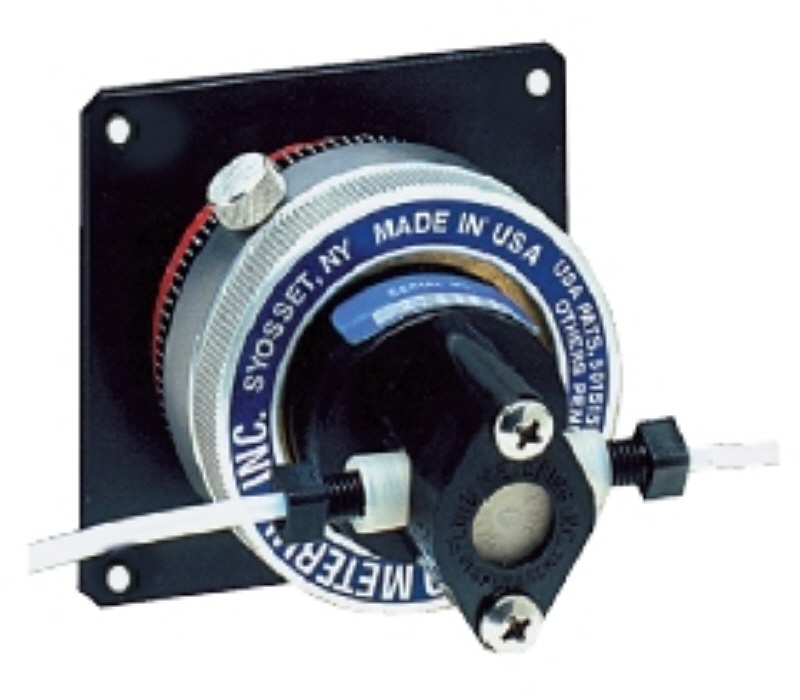

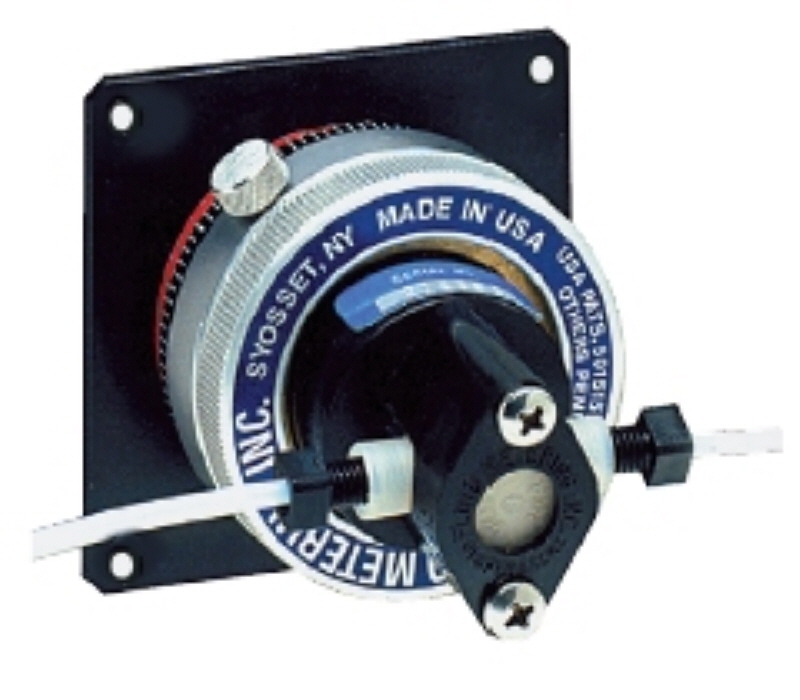

- Valveless Rotary Piston Pump Head for
- REGLO-CPF Analog, REGLO-CPF Digital and MCP-CPF Process Pump Drives.
- Flow rates on the MCP-CPF Process Pump Drive
- from 0.025 to 45 ml/min.
- Flow rates on the REGLO-CPF Analog Pump Drive
- from 0.045 to 45 ml/min.
- Flow rates on the REGLO-CPF Digital Pump Drive
- from 0.1 to 45 ml/min.
- RH0.CKC-LF Low Flow version for flow rates below 50 ml/min
| Type Order No | RH00.CKC-LF FMI 009 | RH00.SKY-LF FMI 010 | RH00.STY-LF FMI 011 | RH00.CTC-LF FMI 012 |
| Piston | Ceramic | 316 Stainless steel | 316 Stainless steel | Ceramic |
| Cylinder case | Kynar(Fluorocarbon{PVDF}) | Kynar(Fluorocarbon{PVDF}) | Tefzel | Tefzel |
| Cylinder liner | Ceramic | Carbon | Carbon | Ceramic |
| Lip seals | Rulon AR | Rulon J | Rulon J | Rulon AR |
| Gland washers | PTFE | PTFE | PTFE | PTFE |
| Max. temperature | 100°C | 60°C | 60°C | 100°C |
| Max. differential pressure | 6.9bar | 6.9bar | 6.9bar | 6.9bar |
| Flow ports | Kynar UNF 1/4"-28(female) | Kynar UNF 1/4"-28(female) | UNF 1/4"-28(female) | UNF 1/4"-28(female) |
