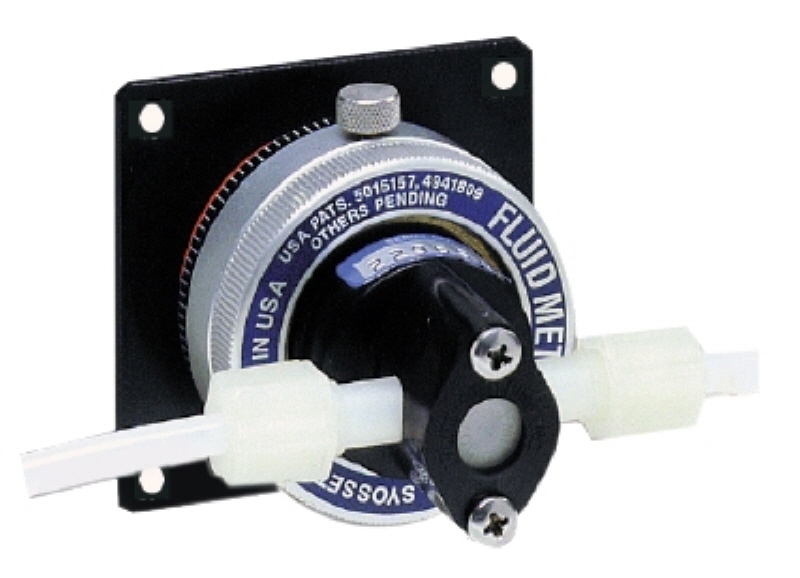

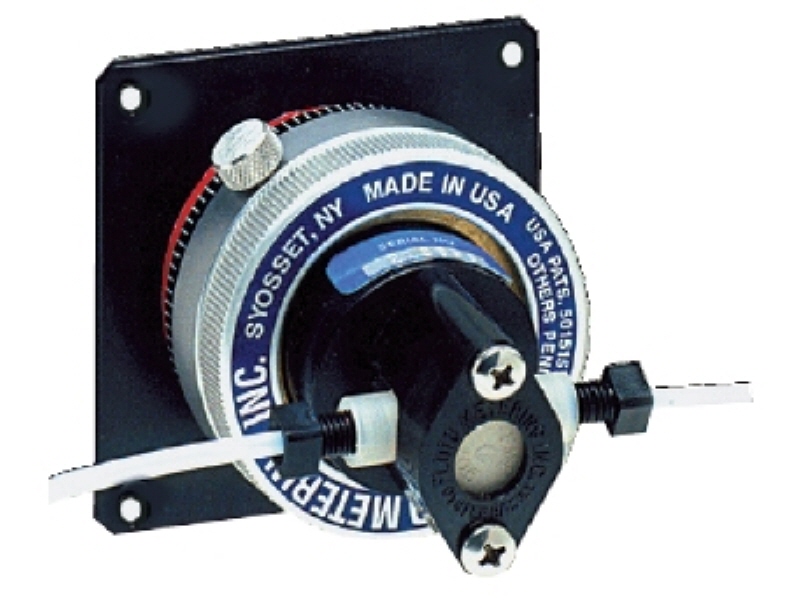

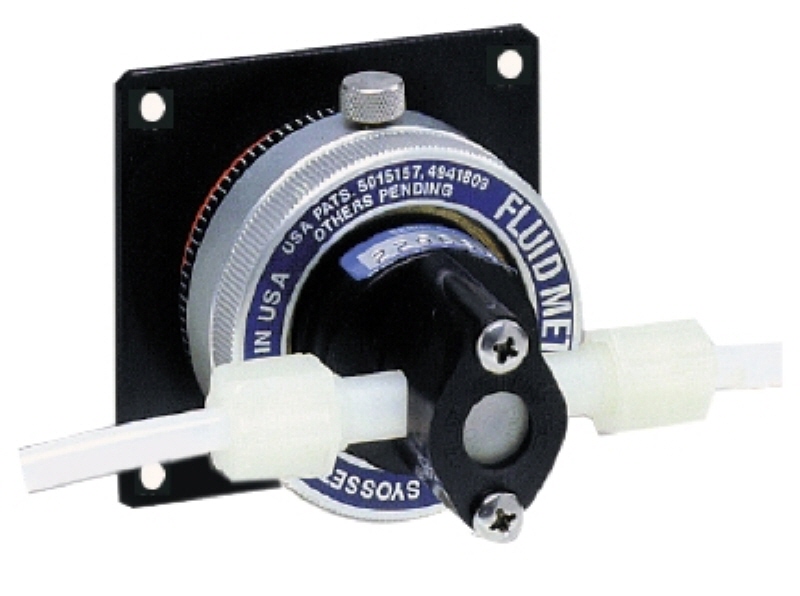

RH1
피스톤펌프 Precision Pump > Piston Pump > ~180ml/min- 제품설명
-
- 0.1-180 ml/min
- 6.9 bar Differential Pressure
- 10-100 ul Stroke Volume
- 사용유체에 따른 헤드 재질 선택 가능
- Maker : ISMATEC / USA
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
- Valveless Rotary Piston Pump Head for
- REGLO-CPF Analog, REGLO-CPF Digital and MCP-CPF Process Pump Drives.
- Flow rates on the MCP-CPF Process Pump Drive
- from 0.1 to 180 ml/min.
- Flow rates on the REGLO-CPF Analog Pump Drive
- from 0.18 to 180 ml/min.
- Flow rates on the REGLO-CPF Digital Pump Drive
- from 0.4 to 180 ml/min.
| Type Order No | RH1 CKC / FMI 007 | RH1.CKC-LF / FMI015 | RH1.CTC / FMI 008 |
| Piston | Ceramic | Ceramic | Ceramic |
| Cylinder case | Kynar(Fluorocarbon{PVDF}) | Kynar(Fluorocarbon{PVDF}) | Tefzel |
| Cylinder liner | Ceramic | Ceramic | Ceramic |
| Lip seals | Rulon AR | Rulon AR | Rulon AR |
| Gland washers | PTFE | PTFE | PTFE |
| Max. temperature | 100°C | 100°C | 100°C |
| Max. differential pressure | 6.9bar | 6.9bar | 6.9bar |
| Flow ports | 2 fixed tube fittings for PTFE tubing 6mm o.d. |
Kynar UNF 1/4"-28(female) | 2 fixed tube fittings for PTFE tubing 6mm o.d. |
