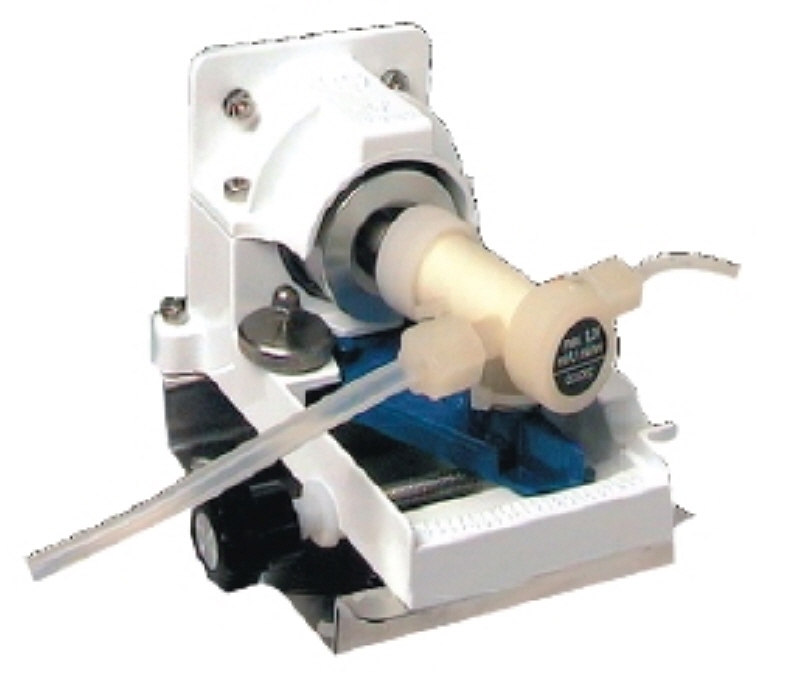

QP Q3
피스톤펌프 Precision Pump > Piston Pump > ~2,300ml/min- 제품설명
-
- 0.51-2300 ml/min
- 6.9 bar Differential Pressure
- 51.2-1280 ul Stroke Volume
- 사용유체에 따른 헤드 재질 선택 가능
- Maker : ISMATEC / USA
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
- 밸브리스 로터리 피스톤 펌프 헤드
- for MCP-CPF Process Pump Drive.
- Flow rates from 0.51 to 2300 ml/min.
- Differential Pressure @ Differential Pressure @ 1600 to 1800 rpm: max. 0.5 bar (7.25 psig)
| QP Q3.CKC / FMI 217 |
| Ceramic |
| Kynar (Fluorocarbon {PVDF}) |
| Ceramic |
| Rulon AR |
| PTFE |
| none |
| 100°C |
| 1.7bar(to 1600rpm) 0.5bar(from 1600rpm) |
| for tubing up to 12.7mm i.d. or PTFE tubing 6mm o.d. Included: 2 Kynar(PVDF) apators for tubing with 6mm o.d. |
| Tubing Tygon ST R-3603 12.7mm i.d. Order No. SC 0382 PTFE Tubing 4mm i.d./6mm o.d., 3.6m long Order No. MF 0336 |
