Active Debubbler
디버블러/디게서 Precision Pump > Degassing System > Debubbler- 제품설명
-
- 이송중 액체의 기포를 제거하는데 탁월한 제품
- Maker : IDEX / USA
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
| P/N | Description | Standard bubble trap size | Transfer line length | Internal volume | Max bubble capacity |
| DEBUBBLER SERIES - AVAILABLE STANDARD CONFIGURATION | |||||
| 9000-1540 | 2.5mL Active debubbler | 2.5ml | - | 2.5mL | 2.5mL |
| 9000-1541 | 5mL Active debubbler | 5ml | - | 5mL | 5mL |
| 9000-1544 | 2.5mL Active debubbler/degasser | 2.5ml | 17.5"(444.5mm) | 2.5mL in transfer line + 2.5mL in bubble trap | 2.5mL |
| 9000-1545 | 5mL debubbler/degasser | 5ml | 34"(863.6mm) | 5mL in transfer line + 5mL in bubble trap | 5mL |
| 9000-1549 | 1.1mL Transfer-line degasser | - | 1.1m(43") | 4mL | N/A |
"Remove Bubbles in Fluid Stream Before or After the Pump
-
기기 성능이 향상되어 기포 형성으로 인한 가동 중지 시간이 줄어듭니다. -
부분 시약 분배 감소로 인해 위양성(false positive)이 줄어듭니다. -
모든 펌프, 탈기 트레이 또는 독립형 탈기 응용 분야에 쉽게 통합됩니다.

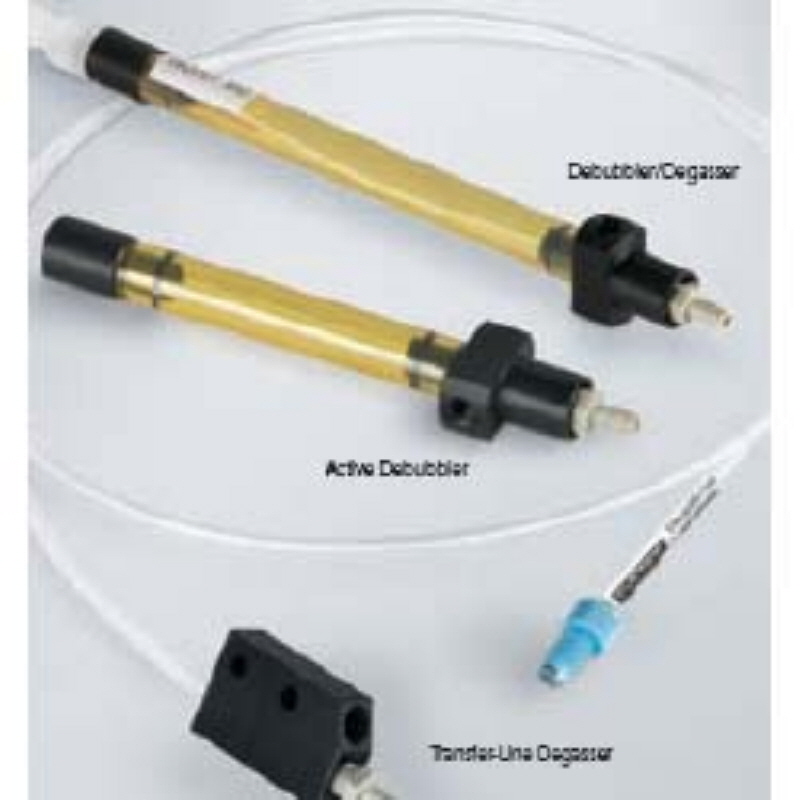

| Active debubbler | Debubbler/ Degasser |
Transfer-line Degasser |
|
| Perfect for applications that require dissolved gas like oxygen for reaction kinetics |
√ | ||
| Improves dispense precision by capturing and removing bubbles |
√ | √ | |
| Eliminates false positives and reduces reagent waste by improving instrument performance |
√ | √ | |
| Easily integrates into fluidic path | √ | √ | √ |
| Creates stable instrument performance across system and environmental fluctuations |
√ | √ | √ |
| Prevents the formation of bubbles downstream of the degasser |
√ | √ | |
| Eliminates fluctuations for improved detector sensitivity and accuracy by preventing bubble formation |
√ | √ | |
| Improves fluidic system reliability because coaxial design reduces the number of connections |
√ | ||
| Flexible design can be implemented as transfer line in new instruments or existing instruments that don't have space available |
√ | ||
| Minimizes fluidic system internal volumes to reduce reagent cost | √ |
1.Dimension
2.사양
2.사양
| Active debubblers | Degasser/ debubblers |
Transfer-line Degasser |
|
| Bubble removal(volume of air removes/min @ 10mL/min H2O) |
Up to 30cc | Up to 30cc | N/A |
| Degassing efficiency┼ @1mL/min H2O | N/A | 2.5ml size: 36% O2 removal 5.0ml size: 55% O2 removal |
<4 ppm dissolved O2 at 5ml/min |
| Membrane material | PORIDEX | PORIDEX | PORIDEX |
| Wetted materials | PORIDEX, Polyolefin, FEP, ETFE, Ultem |
PORIDEX, Polyolefin, FEP, ETFE, Ultem |
PORIDEX, Polyolefin, FEP, ETFE |
| Solvent compatibility | Solutions > 50% aqueous. Not compatible with detergent concentrations > 0.05% |
||
| Standard bubble trap volume | 2.5/5.0ml | 2.5/5.0ml | N/A |
| Transfer-line volume | N/A | 2.5/5.0ml | <4ml |
| Maximum operating pressure |
200kPa(30psi) @ 25℃ | ||
| Maximum operating temperature |
40℃ | ||
| Recommended vacuum level | Minimum 16kPa absolute | ||
| Liquid connection | 1/4-28 fitting absolute | ||
| Vacuum connection | Tubing vacuum port(s) for 1/8"(3mm) ID elastomeric tubing | ||
| Pressure drop | 0.8mm Hg/ml/min (assumes laminar flow and viscosity of 1 Cp) | ||
