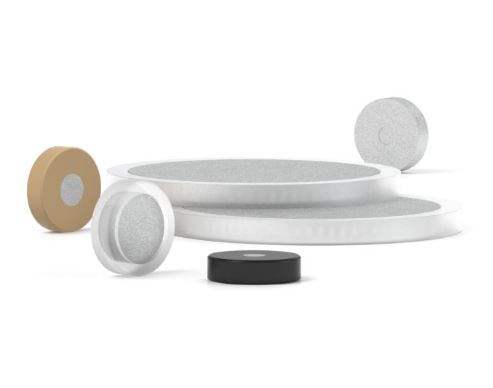

Semi-Prep Stainless Steel Frits
Semi-Prep 프릿 (SUS재질) Consumable > Filter > Frit- 제품설명
-
- 2um, 10um, 20um 프릿 선택 가능
- Maker : IDEX / USA
- 연락처
-
경기본사 : 031-790-1907 (내선1)
대전지사 : 042-824-5167
| P/N | Porosity | Disc diameter | Disc thickness | Ring OD | Ring material | Frit volume | Qty. |
| SEMI-PREP STAINLESS STEEL FRITS | |||||||
| A-105 | 10μm | 0.062"(0.16cm) | 0.062"(0.16cm) | 0.250"(0.64cm) | PCTFE | 0.9μL | ea |
| A-106 | 10μm | 0.094"(0.24cm) | 0.062"(0.16cm) | 0.250"(0.64cm) | PCTFE | 2.0μL | ea |
| A-107 | 10μm | 0.189"(0.48cm) | 0.062"(0.16cm) | 0.254"(0.65cm) | PCTFE | 9.1μL | ea |
| A-120 | 20μm | 0.125"(0.32cm) | 0.062"(0.16cm) | 0.250"(0.64cm) | PCTFE | 3.7μL | ea |
| A-122 | 20μm | 0.188"(0.48cm) | 0.062"(0.16cm) | 0.254"(0.65cm) | PCTFE | 9.7μL | ea |
| A-224 | 20μm | 0.188"(0.48cm) | 0.062"(0.16cm) | 0.254"(0.65cm) | PTFE | 9.7μL | ea |
| A-331 | 10μm | 0.750"(1.91cm) | 0.062"(0.16cm) | 0.880"(2.24cm) | ETFE | 141.9μL | ea |
| A-332 | 2μm | 0.750"(1.91cm) | 0.062"(0.16cm) | 0.880"(2.24cm) | ETFE | 141.9μL | ea |
| A-337 | 20μm | 0.750"(1.91cm) | 0.062"(0.16cm) | 0.880"(2.24cm) | ETFE | 152μL | ea |
| A-343 | 2μm | 0.625"(1.59cm) | 0.062"(0.16cm) | 0.750"(1.91cm) | PCTFE | 112.6μL | ea |
