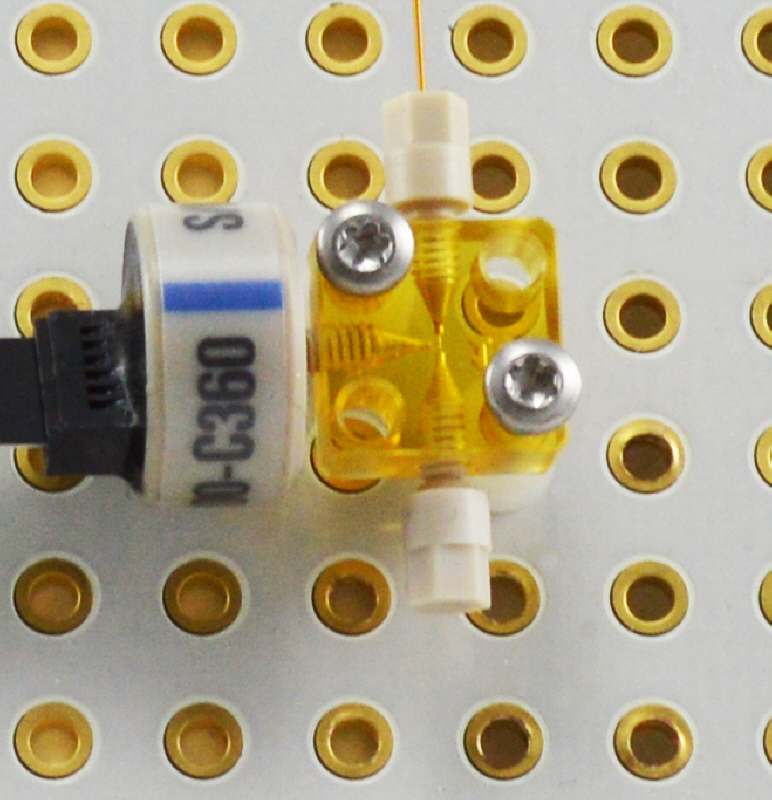

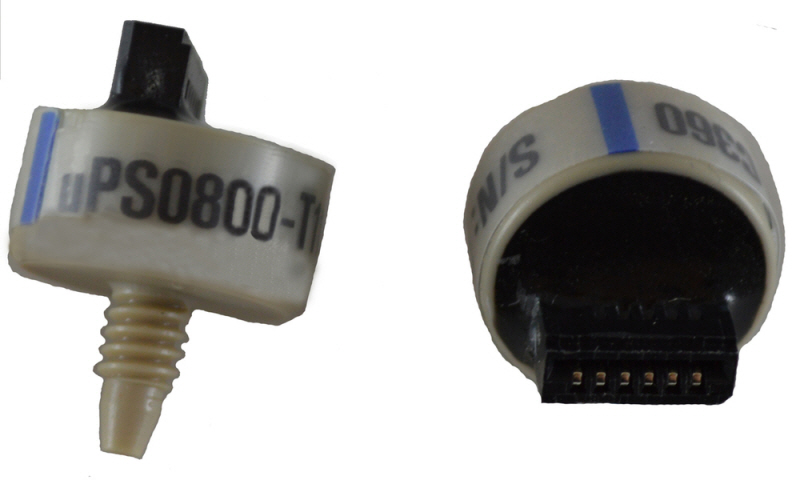

*uPS Series Pressure Sensor
-Compace, low-dead-volume design
-Threads directly to LabSmith Captite ports
-Use with uProcess software for coordinated and closed-loop control

*Specifications
uPS Pressure Sensors     PartNumber uPS[XXXX]-[YYYY]-[ZZ]

Range[xxxx]	Max pressure	Damage pressure	Resolution
250	250kPa abs (35psia)	500 kPa abs	1 Pa
800	800kPa abs (115psia)	1600 kPa abs	5 Pa



Model [YYYY]
C360	Compatible with C360 (360 μm OD capillary) or T132 (1/32" OD tubing) components
T116	Compatible with T116(1/16" OD tubing) components



Accuracy [ZZ]	Drift	Hysteresis	Scale	Thermal
01	<0.2%F.S.	<0.1%F.S.	<0.2% F.S.	<0.03% F.S./°C



Temperaure range	15°C-60°C(to achieve specified accuracy)
Working temperature	0°C-100°C
Housing material	Peek
Fill	Perfluorinated oil
Measures Vacuum	Yes
Internal Volume	Oil filled, 6.5μl
4AM01 Analog Manifold	Required. For connecting up to 4uPS pressure or uTS temperature sensors; includes 4 flat flex connector cables.
EIB200 Automation Interface	Required for control of 4AM01 analog manifold via uProcess software; includes software, LabVIEW drivers, and SDK
