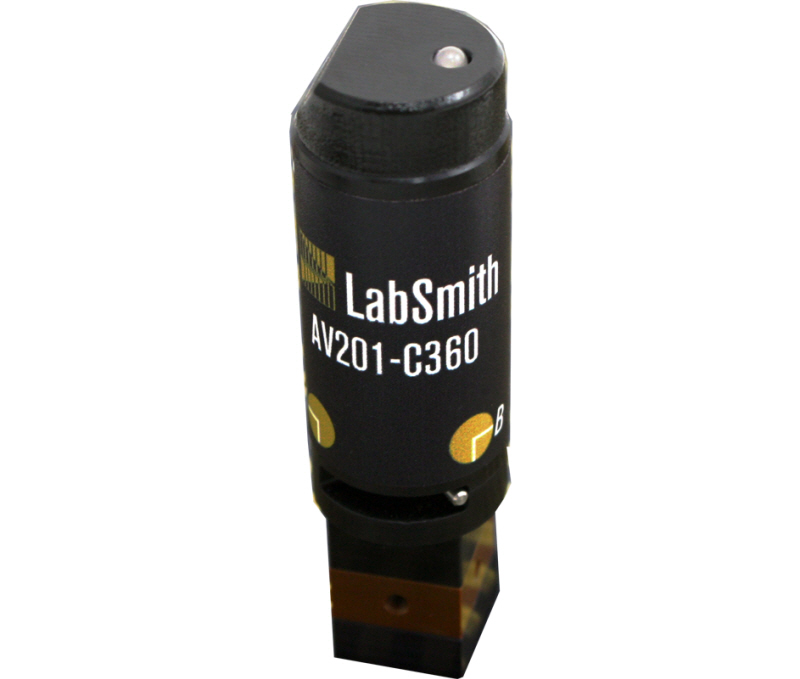

AV201 Automated Valves
자동밸브(AV201) Precision Pump > Microfluidic System > On-A-Chip Assy- 제품설명
-
- 2-position 3-port automated valves

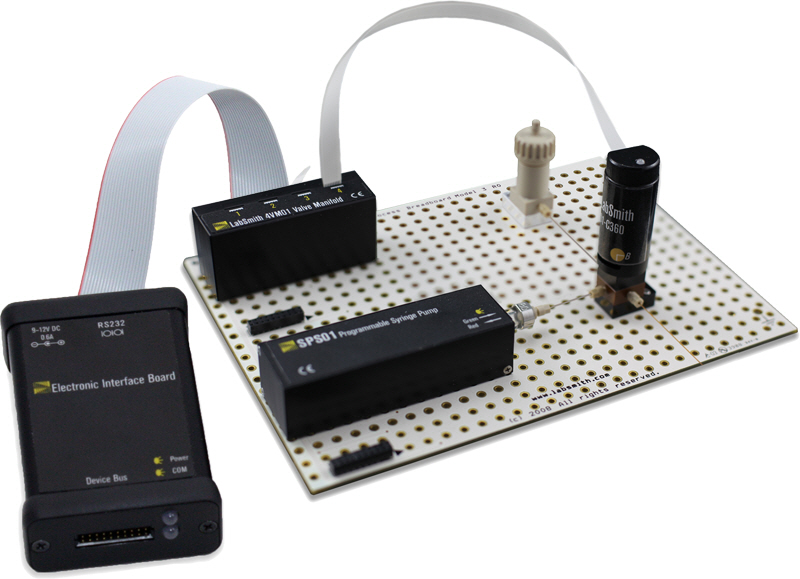

- 4VM Valve manifold와 EIB Controller로 PC controll 가능
- Tubing size는 360um, 1/32", 1/16" OD 사용 가능
- 소모품은 별도
- Maker : Labsmith/USA
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
| Model | Port configuration | Typical application |
| 201 | 3port, 2position(+closed),"L"pattern flow | Redirecting flow |
| 202 | 4port,2-position(+closed),two simultaneous flow streams between adjacent ports |
Continuous dispensing/refilling(with Breadboard reservoir and two SPS01 syringe pumps) |
| 303 | 6port,2-position(no closed option),three simultaneous flow streams between adjacent ports |
Sample injection |
| 801 | 9-port,8-position,one common port | Select from multiple reagents and/or direct to multiple outputs |
- small footprint
- High pressure
- Low(nl) swept volume
- Easy integration with other uProcess devices

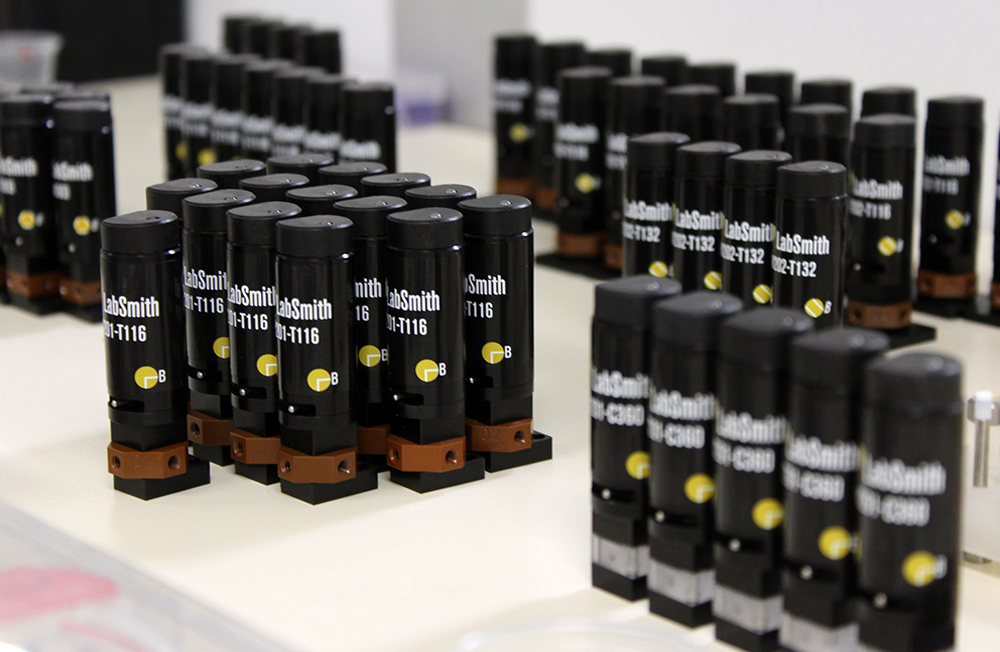

| Model | Swept volume |
Valve volume |
Through hole diameter | Capillary or tubing interface |
| AV201-C360 | 130 nl | 170 nl | 0.01"(250μm) | 360μm OD (via p/m C360-100) |
| AV201-T132 | 130 nl | 170 nl | 0.01"(250μm) | 1/32" OD (via p/m T132-100) |
| AV201-T116 | 130 nl | 280 nl | 0.01"(250μm) | 1/16" OD (via p/m T116-100) |
| AV202-C360 | 90 nl* | 130 nl* | 0.01"(250μm) | 360μm OD (via p/m C360-100) |
| AV202-T132 | 90 nl* | 130 nl* | 0.01"(250μm) | 1/32" OD (via p/m T132-100) |
| AV202-T116 | 90 nl* | 130 nl* | 0.01"(250μm) | 1/16" OD (via p/m T116-100) |
| AV303-C360 | 60 nl* | 100 nl* | 0.01"(250μm) | 360μm OD (via p/m C360-100) |
| AC303-T132 | 60 nl* | 100 nl* | 0.01"(250μm) | 1/32" OD (via p/m T132-100) |
| Model | Swept volume |
Through hole diameter | Capillary or tubing interface | |
| AV801-C360 | 370 nl | 0.01"(250μm) | 360μm OD (via p/n C360-100) | |
| AV801-T132 | 370 nl | 0.01"(250μm) | 1/32" OD (via p/n T132-100) | |
| AV801-T116 | 2.8μl | 0.02"(500μm) | 1/16" OD (via p/n T116-100) | |
