AV202 Automated Valves
자동밸브(AV202) Precision Pump > Microfluidic System > On-A-Chip Assy- 제품설명
-
- 2-position 4-port automated valves
- 4VM Valve manifold와 EIB Controller로 PC controll 가능
- Tubing size는 360um, 1/32", 1/16" OD 사용 가능
- 소모품은 별도
- Maker : Labsmith/USA
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167

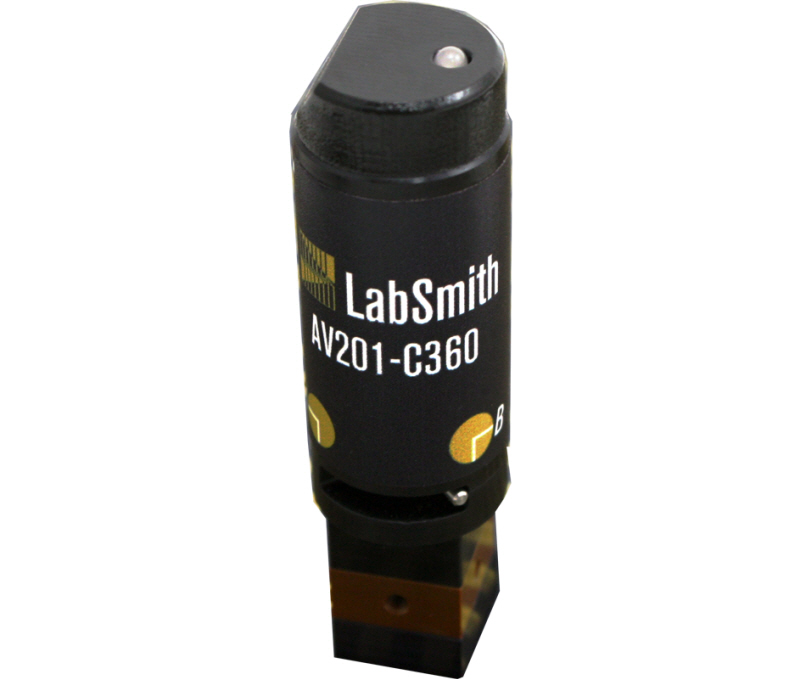

| Valve | AV201-C360 | Two-position, 3-port automated valve for 360um capillary |
| AV201-T132 | Two-position, 3-port automated valve for 1/32" tubing | |
| AV201-T116 | Two-position, 3-port automated valve for 1/16" tubing | |
| AV202-C360 | Two-position, 4-port automated valve for 360um capillary | |
| 4VM01 | Manifold for control of up to 4 automated valves. Includes 4 connector cables |
| Valve | Through hole diameter |
Swept volume |
Valve volume |
| AV201-C360 | 0.01"(250μm) | 130nl | 170nl |
| AV201-T132 | 0.01"(250μm) | 130nl | 170nl |
| AV201-T116 | 0.02"(510μm) | 520nl | 1.1μl |
| AV202-C360 | 0.01"(250μm) | 90nl | 130nl |
