Auto Air Valve 415 series
OEM 고압 에어오퍼레이팅 밸브 Valve > Valve Module > ~1,250 or 1,379 bar- 제품설명
-
- Without an electric motor, safe switching is performed thru air operations.
- Useful for hazardous environments requiring anti-explosive operation.
- Selection and Switching valve
- Maker : FLOM / JAPAN
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
| Part Number | VA-11-385 | VA-11-386 | VA-11-385 |
|---|---|---|---|

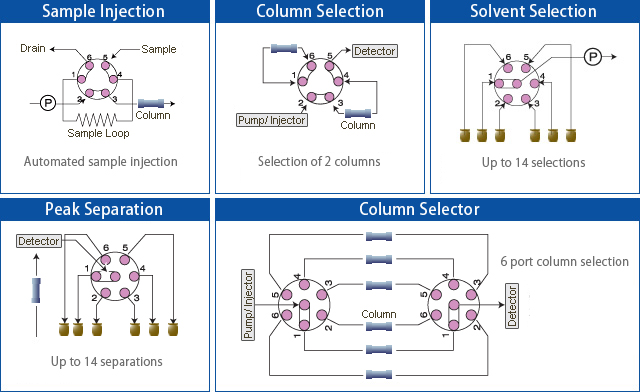

| Application | high speed 6 port analytical | high speed 6 port analytical | port analytical |
| Description | High Pressure SUS | High Resistance Ceramic, High Pressure SUS | High Pressure SUS |
| Path Position | 6 port analytical | ||
| Max Pressure | 125MPa（18000psi） | 104MPa（15000psi） | 35MPa（5000psi） |
| Wetted Material | SUS,High Resistance Plastic | SUS,PEEK,Ceramic | SUS,PEEK |
| Tube OD | 1/16" | 1/16" | 1/16" |
| Path Diameter | 0.25mm（0.01"） | 0.4mm（0.016"） | 0.6mm（0.024"） |
| Order Code | SAV-VA-11-385 | SAV-VA-11-386 | SAV-VA-11-65 |
- Product specifications and appearance may be altered without prior notice.
- Due to continual poduct improvement, products may differ slightly from images displayed in user manuals and catalogs. For custom designs not listed above contact us directly.
- For designs not shown here, contact us directly for more information.
