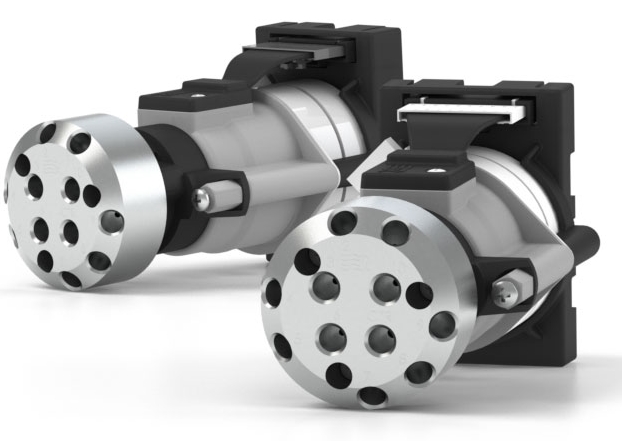

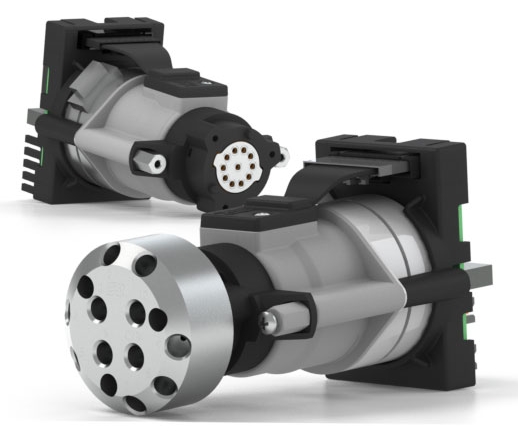

TitanEZ™ (Long-Life Ceramic) OEM Valve
OEM 저압자동밸브 TitanEZ Valve > Valve Module > ~8.5bar- 제품설명
-
- Unique long-life ceramic-on ceramic sealing surfaces
- Reliable, low cost alternative to solenoid valves
- Stand-alone or manifold mountable valve options
- Advanced long-life actuator
- No maintenance
- Low dead volume
- Maker : IDEX /USA
- 연락처
-
경기본사 : 031-790-1907 (내선2)
대전지사 : 042-824-5167
우리는 긴 수명을 요구하는 응용 분야에 사용할 수 있도록 이러한 저압 밸브를 설계하여
IVD 및 생명 공학 응용 분야에 이상적인 솔루션을 제공합니다. 당사 저압 밸브의 압력 등급은 최대 102psi(7bar)입니다.| Specifications | Name | Valve Type | Material | Differential Pressure, Max |
Positions | Ports |
| EZ011-000 | TitanEZ Manifold Mount | Selector | Ceramic | 75 psig | 10 | 11 |
| EZ011-000-4 | TitanEZ Manifold Mount | Selector w/PCB | Ceramic | 75 psig | 10 | 11 |
| EZ011-900 | TitanEZ Stand-alone | Selector w/stator | Ceramic | 75 psig | 10 | 11 |
| EZ011-900-4 | TitanEZ Stand-alone | Selector w/stator& PCB | Ceramic | 75 psig | 10 | 11 |
| EZ240-000 | TitanEZ Manifold Mount | Diverter | Ceramic | 102 psig | 2 | 4 |
| EZ240-000-1 | TitanEZ Manifold Mount | Diverter w/ PCB | Ceramic | 102 psig | 2 | 4 |
| EZ240-900 | TitanEZ Stand-alone | Diverter w/stator | Ceramic | 102 psig | 2 | 4 |
| EZ240-900-1 | TitanEZ Stand-alone | Diverter w/stator & PCB | Ceramic | 102 psig | 2 | 4 |
| EZ260-000 | TitanEZ Manifold Mount | Diverter | Ceramic | 102 psig | 2 | 6 |
| EZ260-000-1 | TitanEZ Manifold Mount | Diverter w/ PCB | Ceramic | 102 psig | 2 | 6 |
| EZ260-900 | TitanEZ Stand-alone | Diverter w/ PCB | Ceramic | 102 psig | 2 | 6 |
| EZ260-900-1 | TitanEZ Stand-alone | Diverter w/stator& PCB | Ceramic | 102 psig | 2 | 6 |
| EZ440-X00(-4) | TitanEZ | Diverter | Ceramic | 102 psig | 4 | 4 |
| EZ450-000 | TitanEZ Manifold Mount | Selector | Ceramic | 102 psig | 4 | 5 |
| EZ450-000-4 | TitanEZ Manifold Mount | Selector w/PCB | Ceramic | 102 psig | 4 | 5 |
| EZ450-900 | TitanEZ Stand-alone | Selector w/stator | Ceramic | 102 psig | 4 | 5 |
| EZ450-900-4 | TitanEZ Stand-alone | Selector w/stator& PCB | Ceramic | 102 psig | 4 | 5 |
| EZ670-X00(-4) | TitanEZ | Selector (opt. stator, PCB) |
Ceramic | 102 psig | 6 | 7 |
